Alternative Impact 36" True Clearance Chromoly Lower A-Arm (single), Ski-Doo Summit / Freeride Gen4 / Gen5 2017–2026 (2102602)
Alternative Impact 36" True Clearance Chromoly Lower A-Arm (single), Ski-Doo Summit / Freeride Gen4 / Gen5 2017–2026 (2102602)
Alternative Impact
FREE ANCHORAGE PICKUP
Most orders are ready within 24 hours. Supplier-order exceptions are confirmed by email; freight to A2D is included in the product price. Need same-day pickup? Call 907-306-3062.
Shipping options and charges are shown at checkout. Shipping information.
CHECK YOUR FITMENT
Confirm your machine’s year, model, submodel, and the selected size or option before ordering. Need help? Contact the A2D team.
Product details

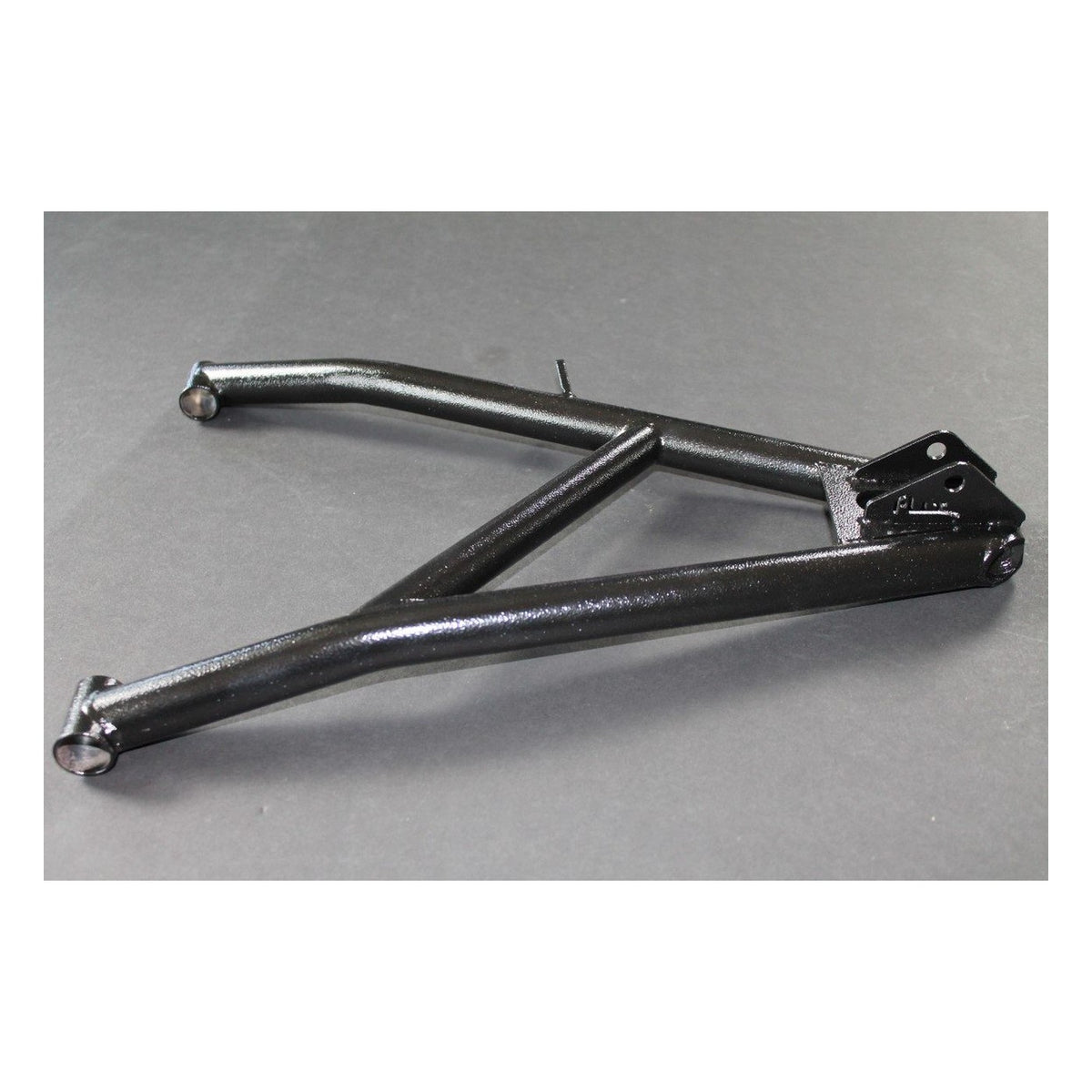

Alternative Impact 2102602 is a single 36" ski-stance true clearance chromoly lower a-arm for Ski-Doo Summit and Freeride snowmobiles on the Gen4 and Gen5 platform, model years 2017-2026. It is sold as one arm; choose left (clutch side) or right (exhaust side) when ordering. It is the replacement lower arm for the Alternative Impact 36" True Clearance kits.
The arms use threaded rod ends at the spindle instead of welded or pressed ball joints. Alternative Impact designed this so that after an impact the rod end can usually be unscrewed, replaced with a spare and the ride continued, rather than replacing a bent arm. The manufacturer states this is not guaranteed but has worked in roughly three out of four cases. Both tubes of each arm are arched, which is what Alternative Impact calls a "true" ground clearance arm: other designs arch only the front tube and leave the rear tube straight. The upper arm is built with a wide radius so it clears any stock or aftermarket shock, including shocks with piggyback reservoirs.
Fitment. Ski-Doo Gen4 / Gen5 Summit and Freeride, model years 2017-2026, 36" ski stance. Side-specific: left hand is the clutch side, right hand is the exhaust side. The manufacturer year selector lists 2017-2025 for this arm; the product is titled 2017-26. Model year is not a checkout option: enter your model year in the order notes at checkout.
Features
- Tubular chromoly arm, both tubes arched for ground clearance
- Threaded rod end mounting at the spindle (rod end sold separately)
- Sold each; left or right
- Finish: Black Hammer Textured, Black Matte
Specifications
| Part number | 2102602 |
| Manufacturer | Alternative Impact (Livingston, Montana) |
| Ski stance | 36" |
| Arm | Lower a-arm, one side |
| Material | Chromoly tube, powder coated |
| Machine | Ski-Doo Summit / Freeride, Gen4 and Gen5, 2017-2026 |
| Includes | 1 lower arm |
| Sold | Each |
Options. Color: Black Hammer Textured, Black Matte. Side: left (clutch side) or right (exhaust side). Rod ends are not included with a single arm; if you need one, add Alternative Impact Spare 5/8" Lower Chromoly Rod End for Ski-Doo Gen4 / Gen5 A-Arms ($33.19). Model year is not a checkout option: enter your model year in the order notes at checkout.
Ordering and installation. Sold as listed (kit or single arm). Ships from stock at our Anchorage shop, or direct from Alternative Impact when not on the shelf. In-store pickup at our Anchorage shop is free. Shipping to your address: USPS Priority Mail (10% of the item price) or UPS 2-Day Air (17.5% of the item price), calculated at checkout. Installation and front-end alignment are available at A2D Motorsports; call (907) 306-3062 to schedule.
