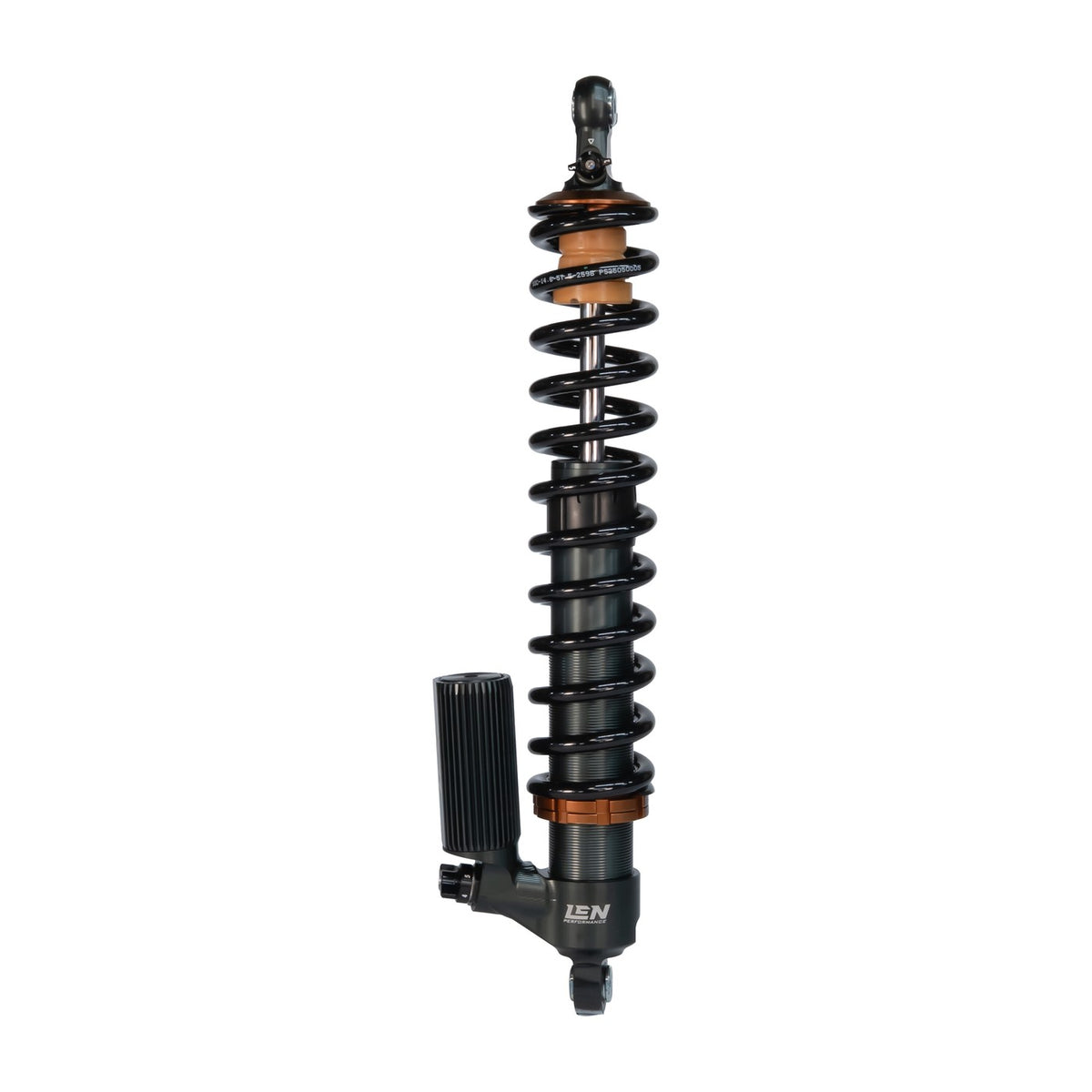

Len Performance Rear Track Shock, Lynx BoonDocker / Shredder / Xterrain / 49 Ranger 2020–2026 (54-80002R)
Len Performance Rear Track Shock, Lynx BoonDocker / Shredder / Xterrain / 49 Ranger 2020–2026 (54-80002R)
Len Performance
FREE ANCHORAGE PICKUP
Most orders are ready within 24 hours. Supplier-order exceptions are confirmed by email; freight to A2D is included in the product price. Need same-day pickup? Call 907-306-3062.
Shipping options and charges are shown at checkout. Shipping information.
CHECK YOUR FITMENT
Confirm your machine’s year, model, submodel, and the selected size or option before ordering. Need help? Contact the A2D team.
Product details
Len Performance LS4-80002R rebuildable rear track shock for the rear suspension on Lynx deep-snow, crossover and utility sleds: BoonDocker 3900 600R (2020–2022) and BoonDocker DS 850 3900 / 4100 (2022), Shredder 600R 146 / 154 (2023–2025), Shredder DS 3900 and Shredder RE 3700 / 3900 850 E-TEC and Turbo R (2023–2026), Xterrain 3700 / 3900 including PRO and STD and Xterrain 146 (2021–2024) and the 49 Ranger (2020–2025). It replaces the factory rear track shock with a coil-over reservoir shock. At $679.95 each, it is A2D's value pick for a rebuildable, adjustable reservoir rear track shock: clicker adjustment, a reservoir and a serviceable design without the cost of a race-level shock.
The rear track shock on the Lynx PPS skid carries its own coil spring and does most of the work on big hits, drops and deep-snow re-entries. This is a long-stroke (157 mm) coil-over unit with a 72 mm powder-coated spring, 5-click compression and 5-click rebound adjustment, and a threaded body with locking preload rings so the rear can be set for rider weight and snow conditions.
Fitment. Sold each. Lynx only. Pairs with the Len Performance 54-80002F front track shock for a complete rear suspension (Len Performance kit LS4-80002K); on the Xterrain PRO 3900 and Xterrain STD 3900 Len lists the rear shock only. Matching ski shocks: 54-80002 on the 49 Ranger and Xterrain; 54-80000LH / RH on the Shredder and BoonDocker DS. Platform: Lynx Radien (BoonDocker, Xterrain, 49 Ranger) and Radien2 (2023 and later Shredder DS / RE).
Fitment list (Len Performance year/model lookup)
- Lynx Ranger: 2020-2022 49 Ranger 600 ACE STD; 2020-2022 49 Ranger 600R E-TEC PRO; 2020-2021 49 Ranger 900 ACE; 2021-2022 49 Ranger 900 ACE PRO; 2023-2025 49 Ranger PRO 600R E-TEC; 2024-2025 49 Ranger PRO 850 E-TEC; 2023-2024 49 Ranger ST - 900 ACE Turbo; 2023-2024 49 Ranger ST 900 ACE; 2023-2025 49 Ranger STD 600 ACE
- Lynx BoonDocker: 2020-2022 Boondocker 3900 600R E-TEC; 2022 Boondocker DS 850 E-TEC 3900; 2022 Boondocker DS 850 E-TEC 4100
- Lynx Shredder: 2023-2025 Shredder 600R E-TEC 146; 2024-2025 Shredder 600R E-TEC 154; 2023-2026 Shredder DS 3900 850 E-TEC; 2023-2026 Shredder DS 3900 850 E-TEC Turbo R; 2023-2024 Shredder RE 3700 850 E-TEC; 2024 Shredder RE 3700 850 E-TEC Turbo R; 2023-2026 Shredder RE 3900 850 E-TEC; 2023-2026 Shredder RE 3900 850 E-TEC Turbo R
- Lynx Xterrain: 2021-2024 Xterrain 3700 600 EFI; 2021-2024 Xterrain 3700 600R E-TEC; 2021 Xterrain 3900 600R E-TEC; 2024 Xterrain 600 EFI 146; 2024 Xterrain 600R E-TEC 146; 2021-2023 Xterrain PRO 3900 600R E-TEC; 2021-2023 Xterrain PRO 3900 850 E-TEC; 2022-2023 Xterrain STD 3700 600 EFI; 2022-2023 Xterrain STD 3700 600R E-TEC; 2022-2023 Xterrain STD 3900 600 EFI; 2022-2023 Xterrain STD 3900 600R E-TEC
Features
- 5-click compression adjustment, tool-free.
- 5-click rebound adjustment.
- Aluminum reservoir shock: the remote-style reservoir keeps oil temperature down and damping consistent on long pulls.
- Fully rebuildable, serviceable shock. Len Performance rebuild kits and replacement parts are available.
- Hardened chromoly shaft for strength and seal life.
- Forged aluminum eyelet heads with premium steel and NBR bushings.
- Powder-coated spring resists corrosion and holds rate in cold, wet conditions.
- Threaded shock body with anodized dual-ring locking preload adjusters: set sag once and it stays set.
- Sold each.
Specifications
| Part number | 54-80002R (Len Performance LS4-80002R) |
| OEM part number replaced | 503196180 (per distributor listings) |
| Shock location | Rear track shock (rear suspension) |
| Chassis / platform | Lynx Radien / Radien2 |
| Adjustments | Compression (5) and rebound (5), plus threaded spring preload |
| Length, extended | 550 mm / 21.66 in |
| Length, compressed | 393 mm / 15.48 in |
| Stroke | 157 mm / 6.18 in |
| Spring | Powder-coated coil spring included, 72 mm / 2.84 in diameter |
| Top eyelet | 10 mm ID x 25.4 mm wide (0.4 in x 1 in) |
| Bottom eyelet | 10 mm ID x 25.4 mm wide (0.4 in x 1 in) |
| Weight | 10.25 lb |
| Includes | One shock |
| Rebuild kit | Len Performance rebuild kits available; call to confirm the kit number for this shock |
| Sold | Each |
Ordering and installation. Sold each. Ships from stock at our Anchorage shop, or from our distributor's Boise, Idaho warehouse when not on the shelf. In-store pickup is available at checkout. Installation and shock setup are available at A2D Motorsports; call (907) 306-3062 to schedule. Len Performance rebuild kits are available, so the shock can be serviced or re-valved rather than replaced.
