Product details

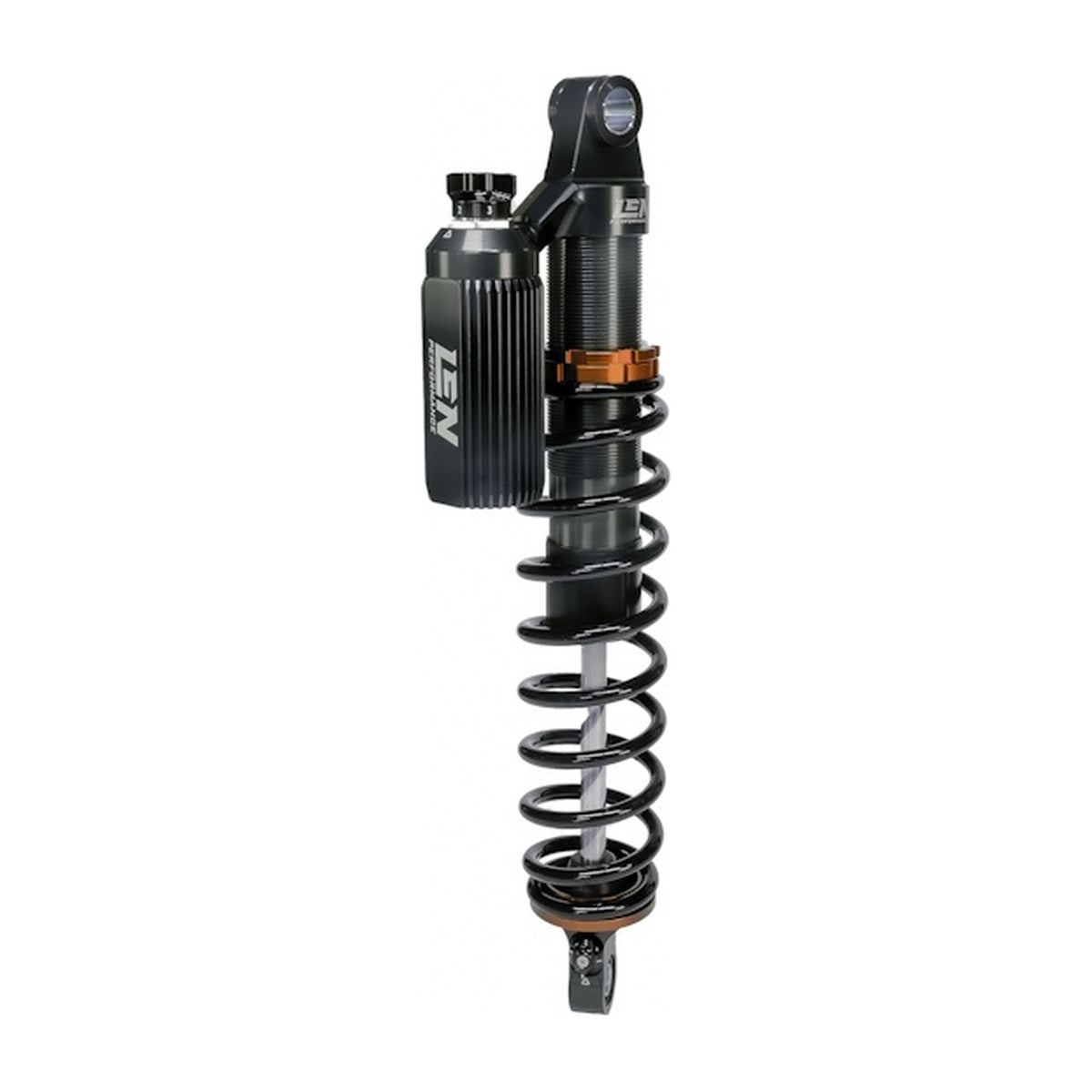

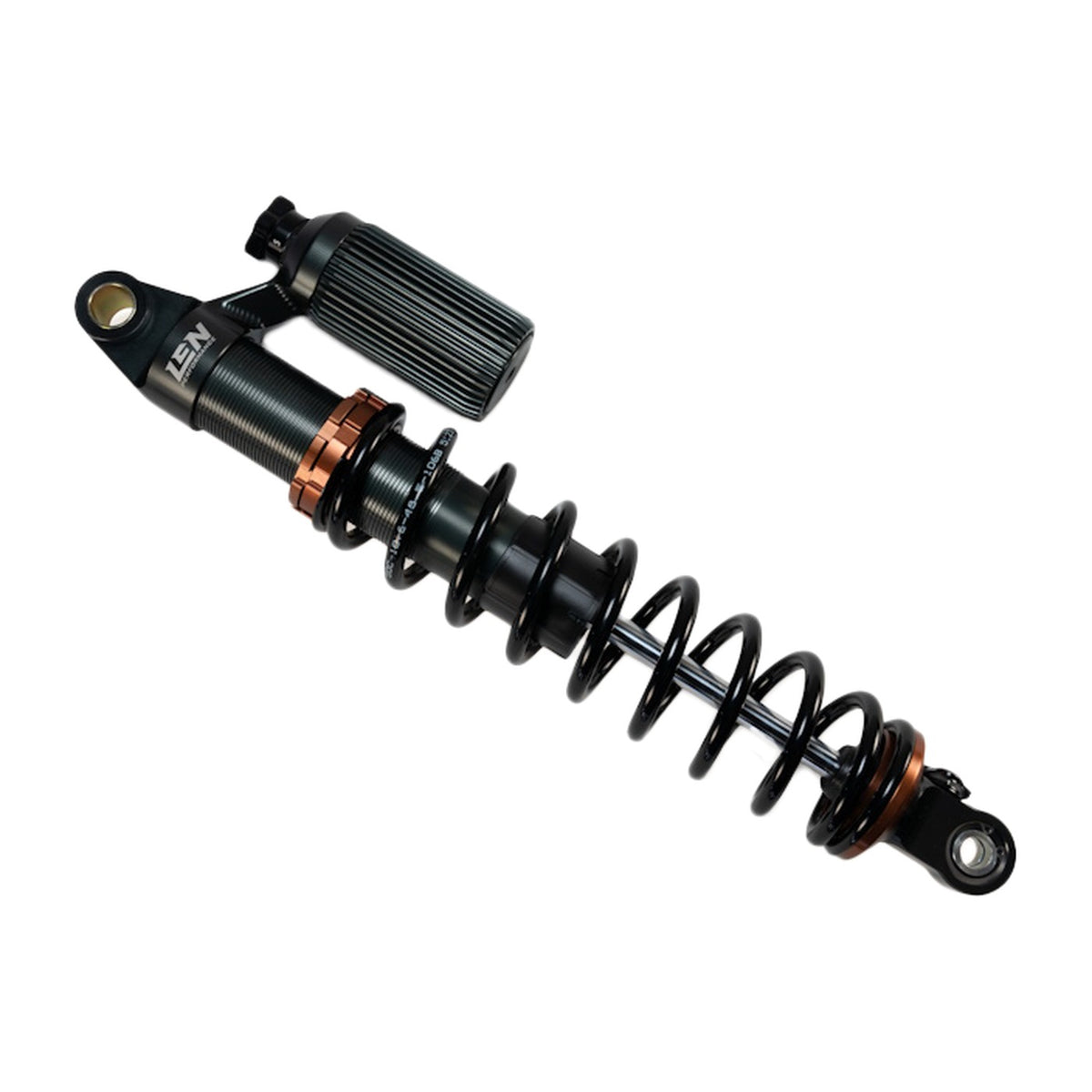

Len Performance LS8-50002 rebuildable ski shock for the Polaris AXYS 600 / 800 Pro RMK 155 / 163 / 174 (including Pro RMK LE) 2016–2018 and the AXYS 800 / 850 SKS 146 / 155, 2016–2021. One part number fits either side. At $522.95 each, it is A2D's value pick for a rebuildable, adjustable reservoir mountain ski shock: clicker adjustment, a reservoir and a serviceable design without the cost of a race-level shock.
On the AXYS RMK and SKS the ski shocks control how the front end settles on a sidehill and how it takes re-entries and stump hits in the trees. This coil-over reservoir shock has 5-click compression and 5-click rebound adjustment and a threaded body with locking preload rings, so ski pressure can be set for rider weight and snow conditions instead of running fixed factory valving.
Fitment. Sold each; order two for a pair (Len Performance sells the pair as kit LS8-50002K). Matching Len Performance track shocks for the SKS 146 skid are the 54-50000F front track shock and 54-50000R rear track shock. Chassis: Polaris AXYS.
Fitment list (Len Performance year/model lookup)
- RMK / Khaos: 2016-2018 600 RMK Pro AXYS 155; 2016-2018 800 RMK Pro AXYS 155; 2016-2018 800 RMK Pro AXYS 163; 2016-2018 800 RMK Pro LE AXYS 155; 2016-2018 800 RMK Pro LE AXYS 163; 2017-2018 800 RMK Pro AXYS 174
- SKS: 2016-2020 800 SKS AXYS 155; 2018-2020 800 SKS AXYS 146; 2019-2021 850 SKS AXYS 146; 2019-2021 850 SKS AXYS 155
Features
- 5-click compression adjustment, tool-free.
- 5-click rebound adjustment.
- Aluminum reservoir shock: the remote-style reservoir keeps oil temperature down and damping consistent on long pulls.
- Fully rebuildable, serviceable shock. Len Performance rebuild kits and replacement parts are available.
- Hardened chromoly shaft for strength and seal life.
- Forged aluminum eyelet heads with premium steel and NBR bushings.
- Powder-coated spring resists corrosion and holds rate in cold, wet conditions.
- Threaded shock body with anodized dual-ring locking preload adjusters: set sag once and it stays set.
- Sold each.
Specifications
| Part number | 54-50002 (Len Performance LS8-50002) |
| OEM part number replaced | 7044302 (per distributor listings) |
| Shock location | Ski (front suspension), fits left or right |
| Chassis / platform | Polaris AXYS |
| Adjustments | Compression (5) and rebound (5), plus threaded spring preload |
| Length, extended | 425 mm / 16.7 in |
| Length, compressed | 295 mm / 11.6 in |
| Stroke | 130 mm / 5.1 in |
| Spring | Powder-coated coil spring included, 74.5 mm / 2.9 in diameter |
| Top eyelet | 10.3 mm ID x 30.3 mm wide (0.4 in x 1.2 in) |
| Bottom eyelet | 12.2 mm ID x 17.8 mm wide (0.5 in x 0.7 in) |
| Weight | 7 lb shipping |
| Includes | One shock |
| Rebuild kit | 54-00002 (Len LSR-00002), per Dennis Kirk |
| Sold | Each |
Ordering and installation. Sold each. Ships from stock at our Anchorage shop, or from our distributor's Boise, Idaho warehouse when not on the shelf. In-store pickup is available at checkout. Installation and shock setup are available at A2D Motorsports; call (907) 306-3062 to schedule. Len Performance rebuild kits are available, so the shock can be serviced or re-valved rather than replaced.
