IceAge ELEVATE Kit — Arctic Cat Ascender Twin-Rail / Yamaha Sidewinder M-TX (Spindles + Rails)

Product details

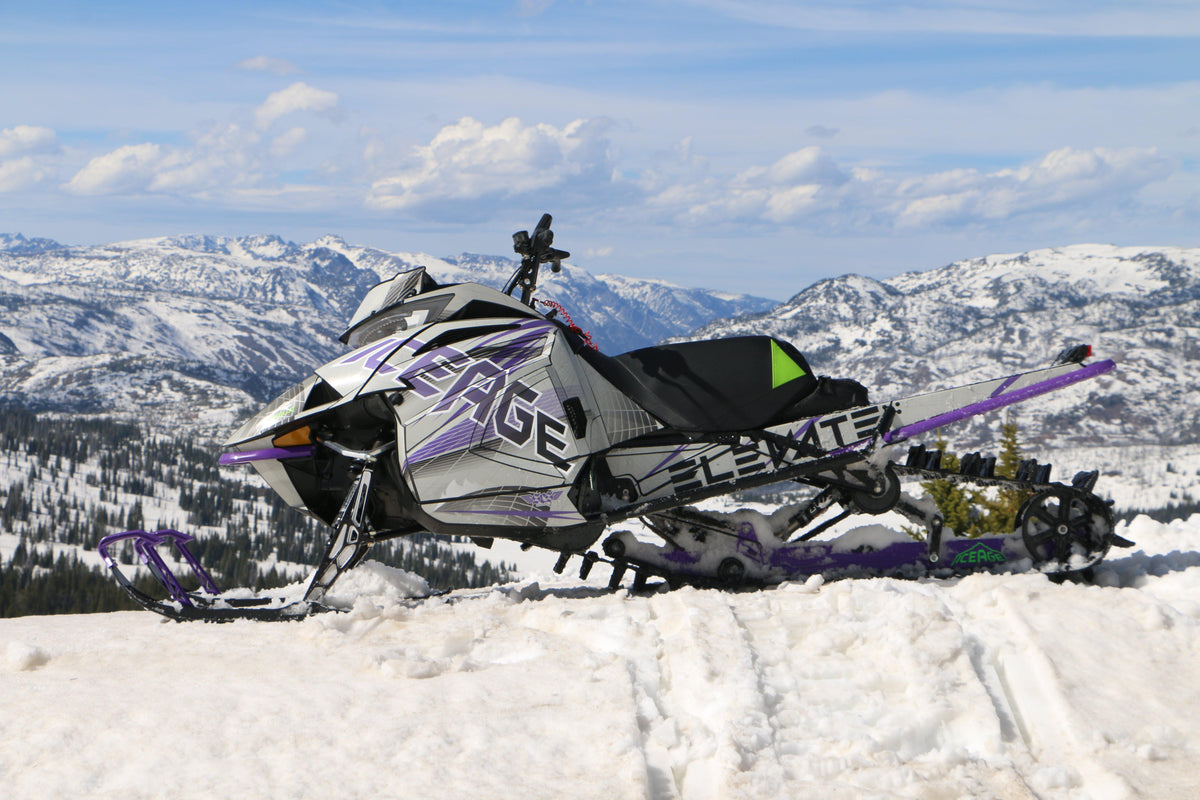

IceAge Performance ELEVATE package for twin-rail Arctic Cat Ascender-chassis sleds and the Yamaha Sidewinder M-TX. The package pairs the ELEVATE spindle kit with IceAge's ELEVATE-specific Ascender rails so the whole chassis comes up a full 2 inches with balanced geometry front and rear.

The spindles raise the bulkhead height 2 inches and add steering stops to eliminate tie-rod bend. The rails stand up the front track shock, raise tunnel height 3/4 inch, and use a steeper rail-bend profile with a relocated front track shock mount for an optimized approach angle in deep snow. Built on IceAge BOMBER rails, backed by IceAge's 2-year 50%-off replacement guarantee.

Choose your rails by track length and color. Every option includes the ELEVATE spindle kit (black anodized, pair).

Fitment

• Arctic Cat Ascender-chassis twin-rail mountain sleds (M 8000 / Mountain Cat), 2018–2023
• Yamaha Sidewinder M-TX twin-rail
• Match the rails to your track length: 141, 146, 153, 162 or 174 in.

For the mono-rail Alpha One and Yamaha Mountain Max, see the ELEVATE spindle kit on its own.

What is included

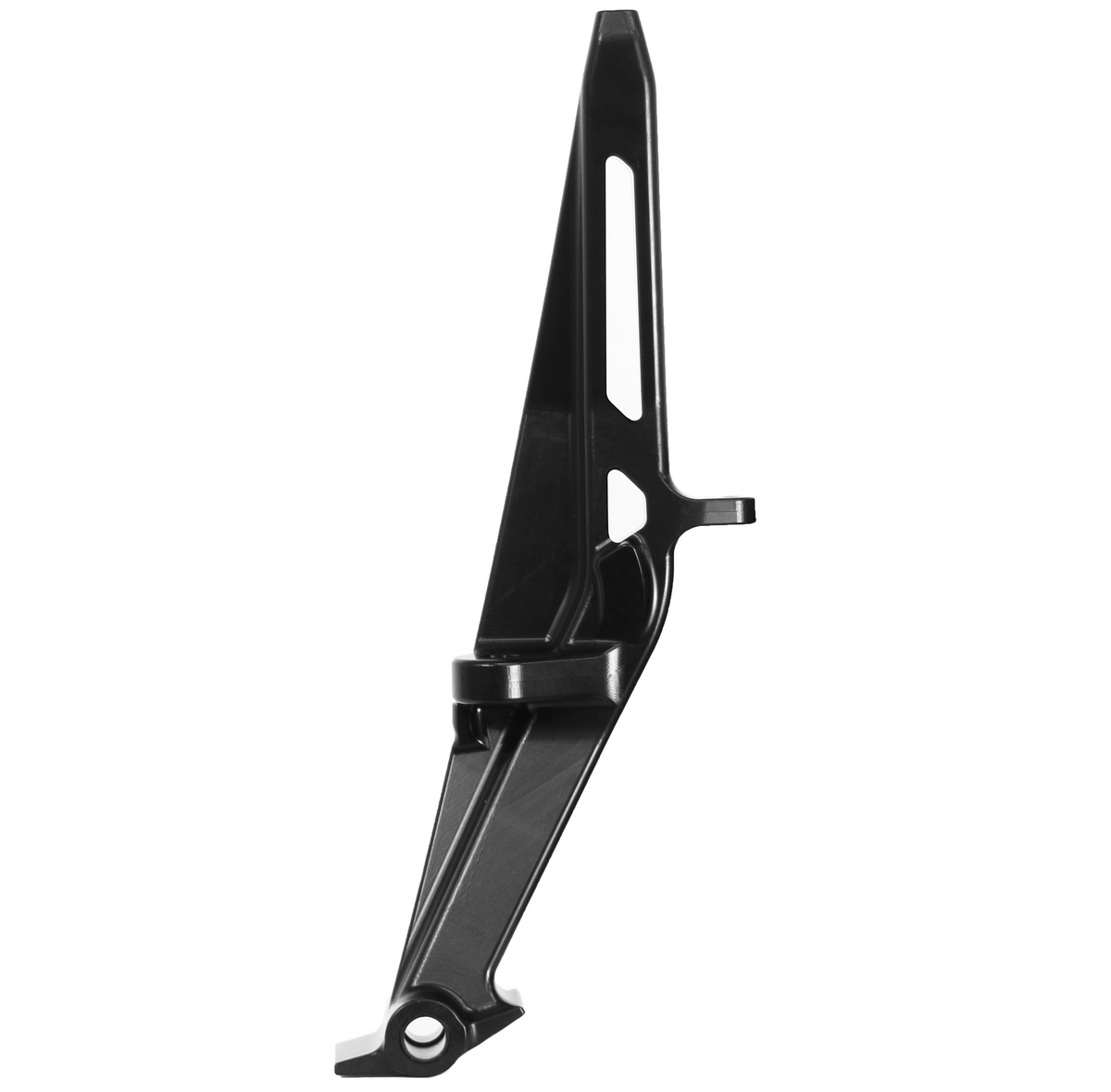

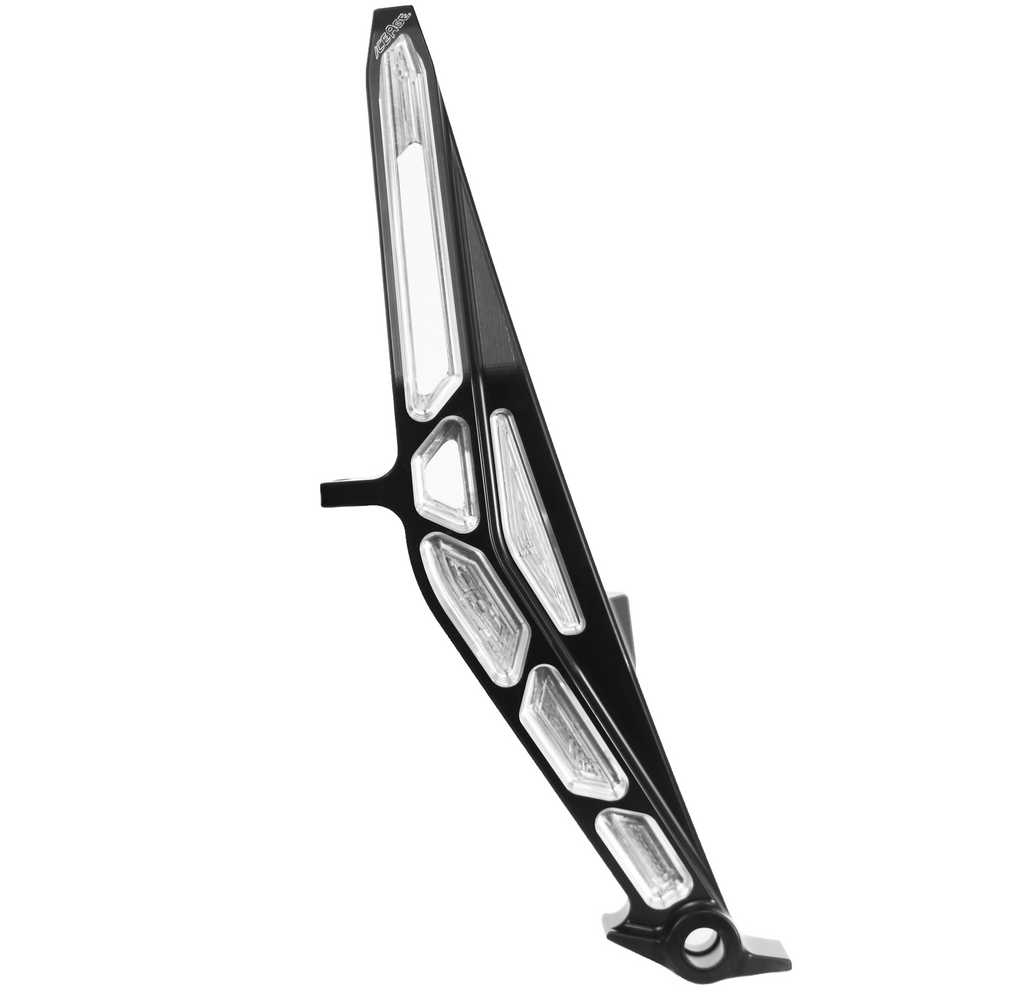

• ELEVATE spindle kit 15-313: 2 billet 6061-T6 spindles, limiter strap, upgraded rear bump stop, hardware

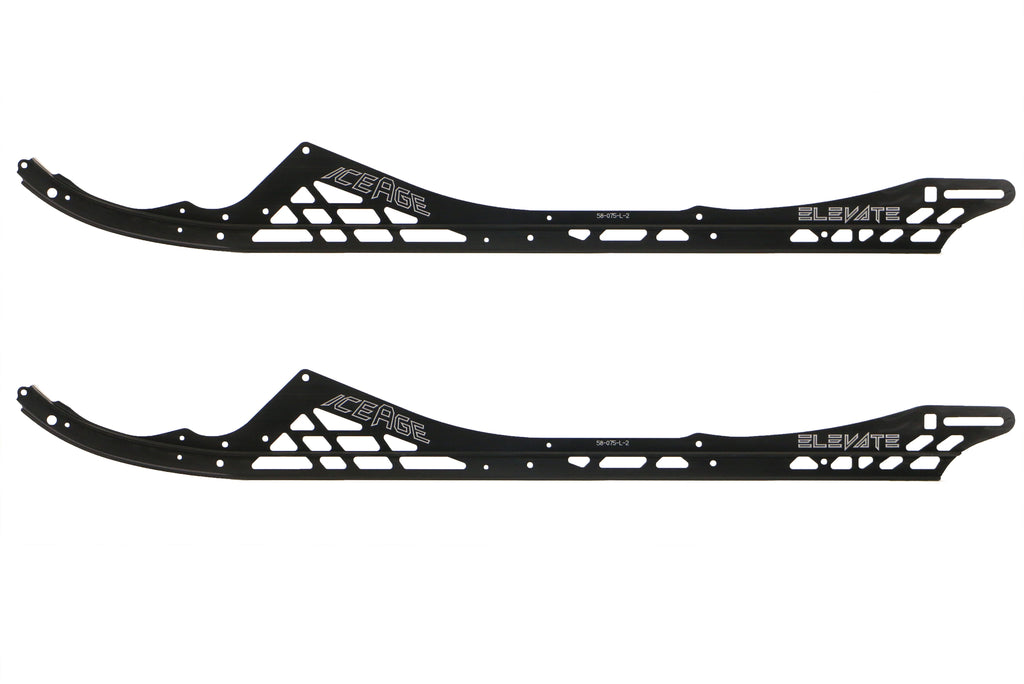

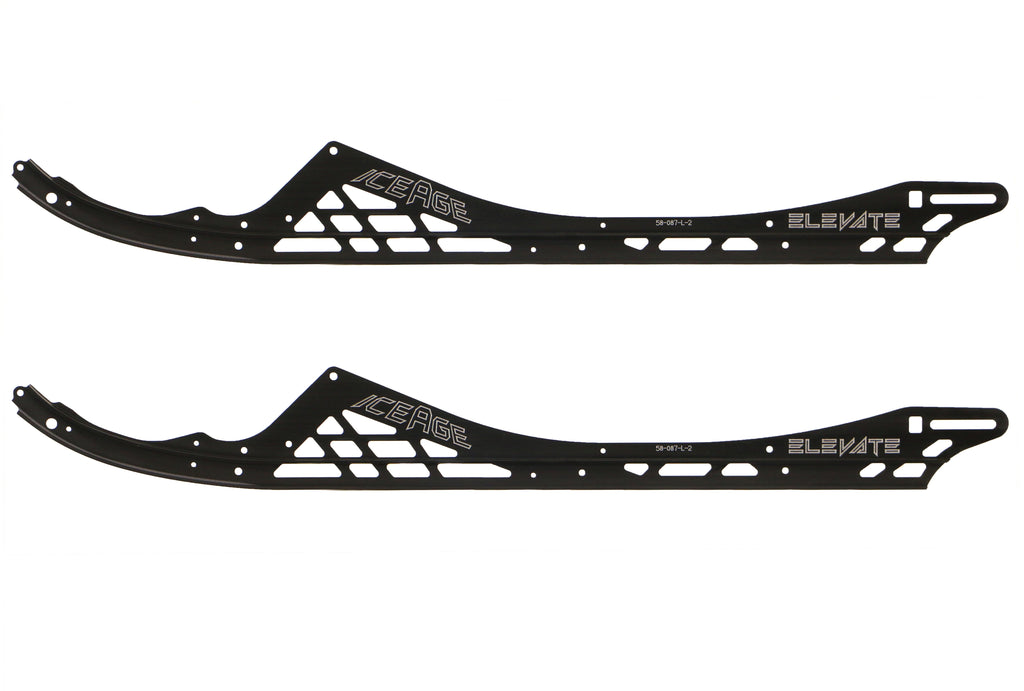

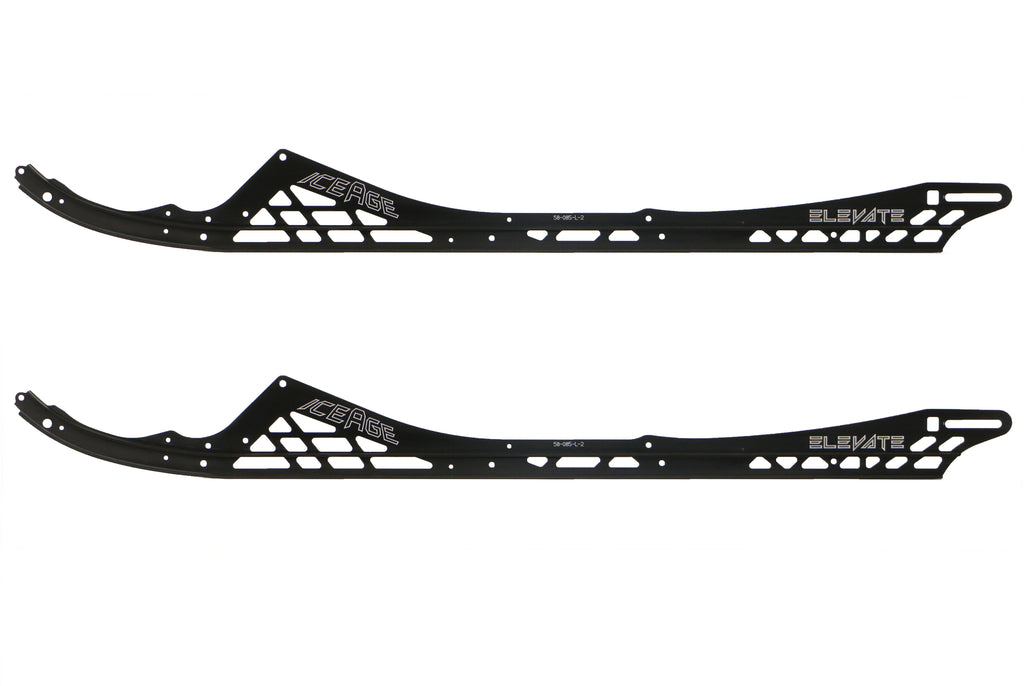

• Ascender ELEVATE rails (pair) in the length and color selected

Wheel block kits are sold separately. IceAge rails use a taller upper rib than factory rails, so factory wheel blocks do not fit without modification; use IceAge wheel block kit 15-304.

Specifications

Ordering and installation: ships from A2D Motorsports in Anchorage, or select in-store pickup at checkout. Items not on the shelf are ordered from IceAge; lead time depends on IceAge stock and we confirm it by email after ordering. Installation is available at our Anchorage shop; call (907) 306-3062 to schedule.
